Boehringer Ingelheim

Free spanning self-supporting gridshell rooflight

Client

Herbert H Drew & Son Limited

Architect

GDM Architects

Location

Bracknell

Sector

Commercial

Office

The Design Brief

Our brief was to design, supply & install a gridshell rooflight that was like a ‘slice of the side of a rugby ball’. The perimeter structure would be provided, but we were to work with the project structural engineer in terms of providing thrust forces etc.

Glass ceiling with a geometric pattern, showing blue sky and clouds through it.

Geometric glass ceiling with triangular panels and blue sky visible through them.

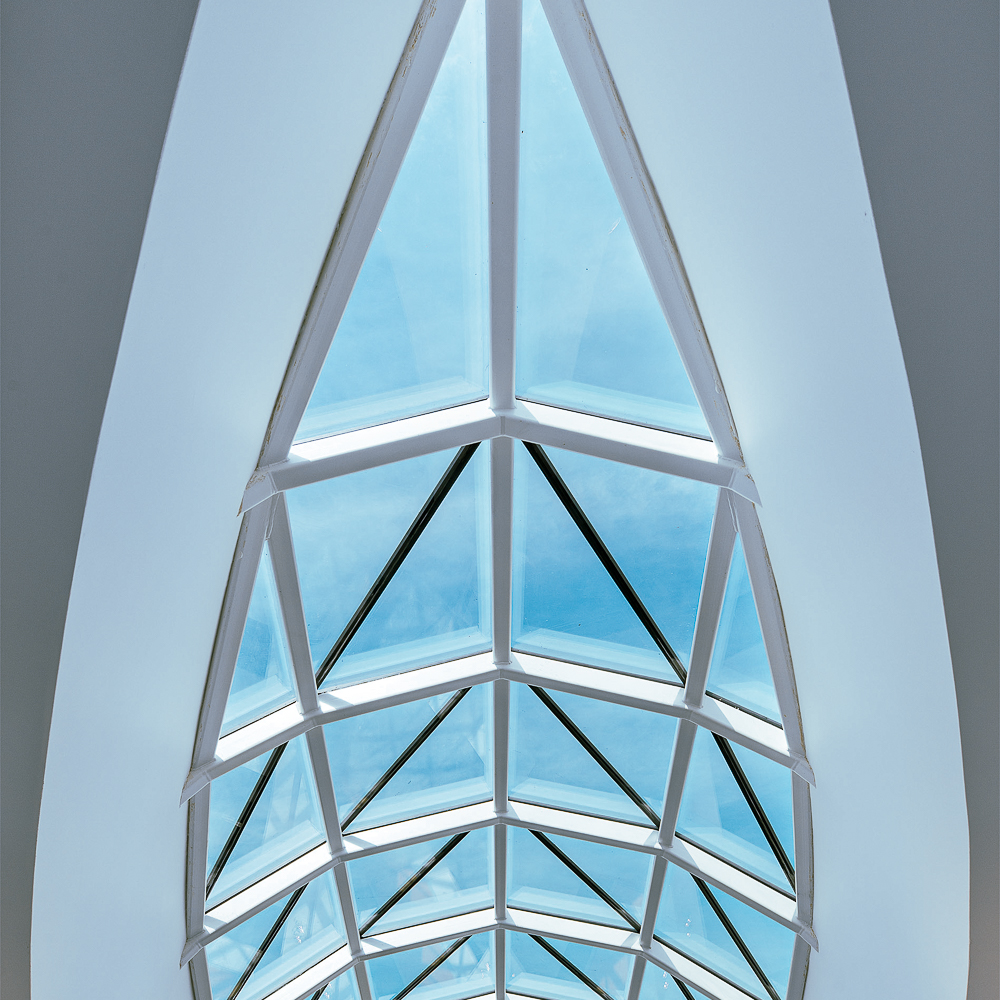

A geometric glass ceiling with a triangular grid structure against a blue sky.

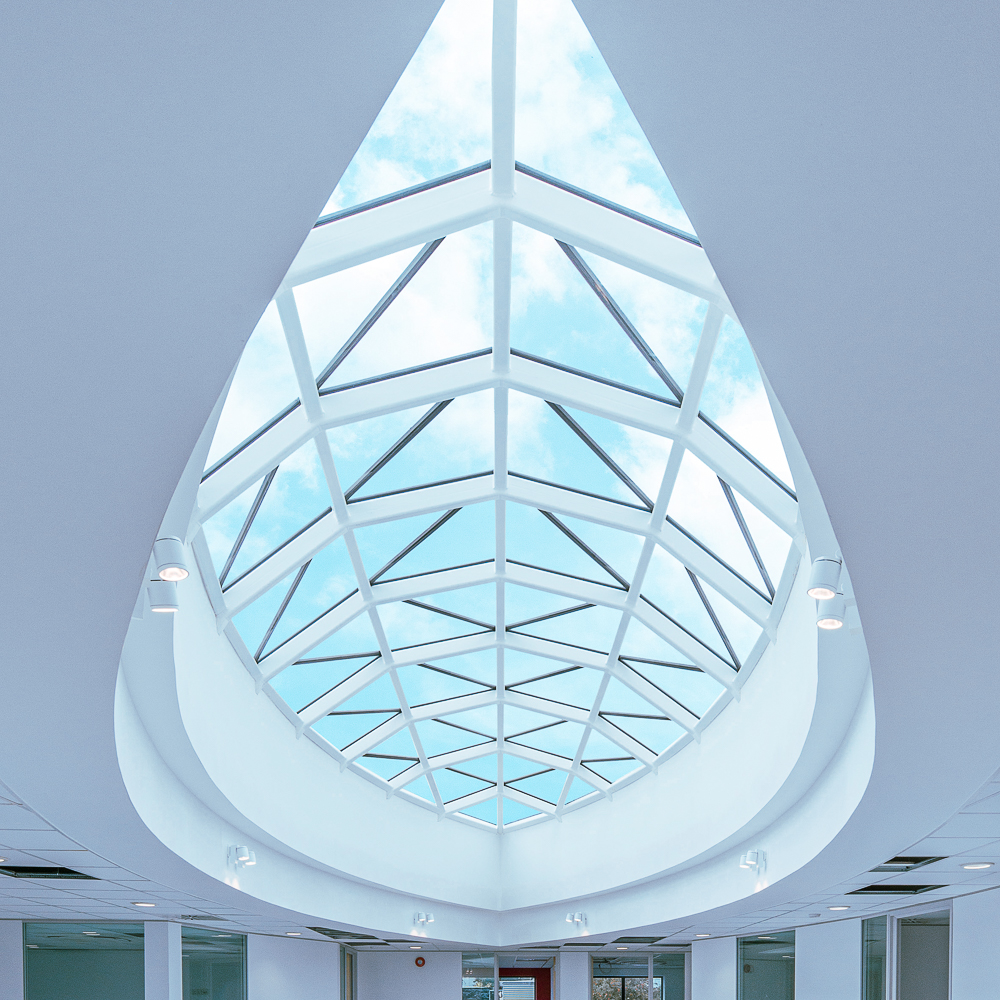

A large skylight with a geometric pattern, letting in natural light, is set in a white ceiling, creating a bright and open atmosphere.

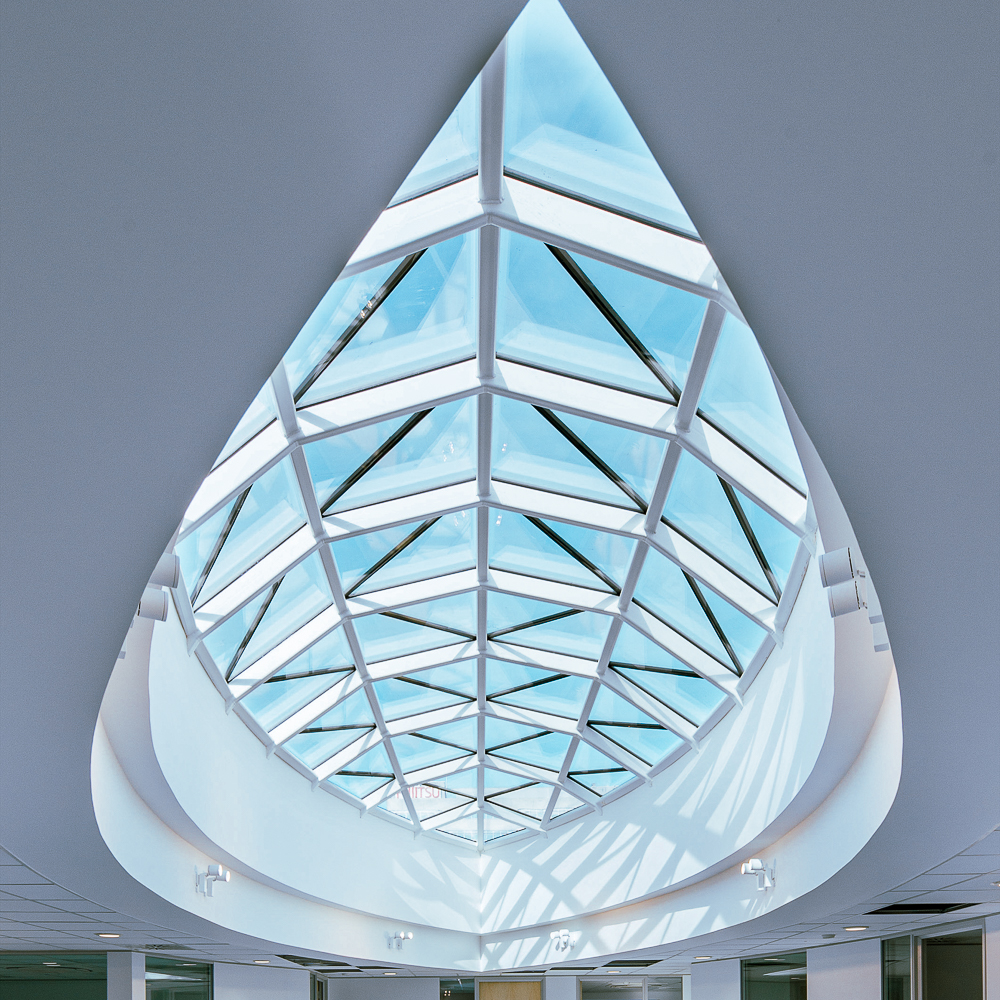

A triangular glass ceiling with a geometric grid pattern, allowing natural light into the room below.

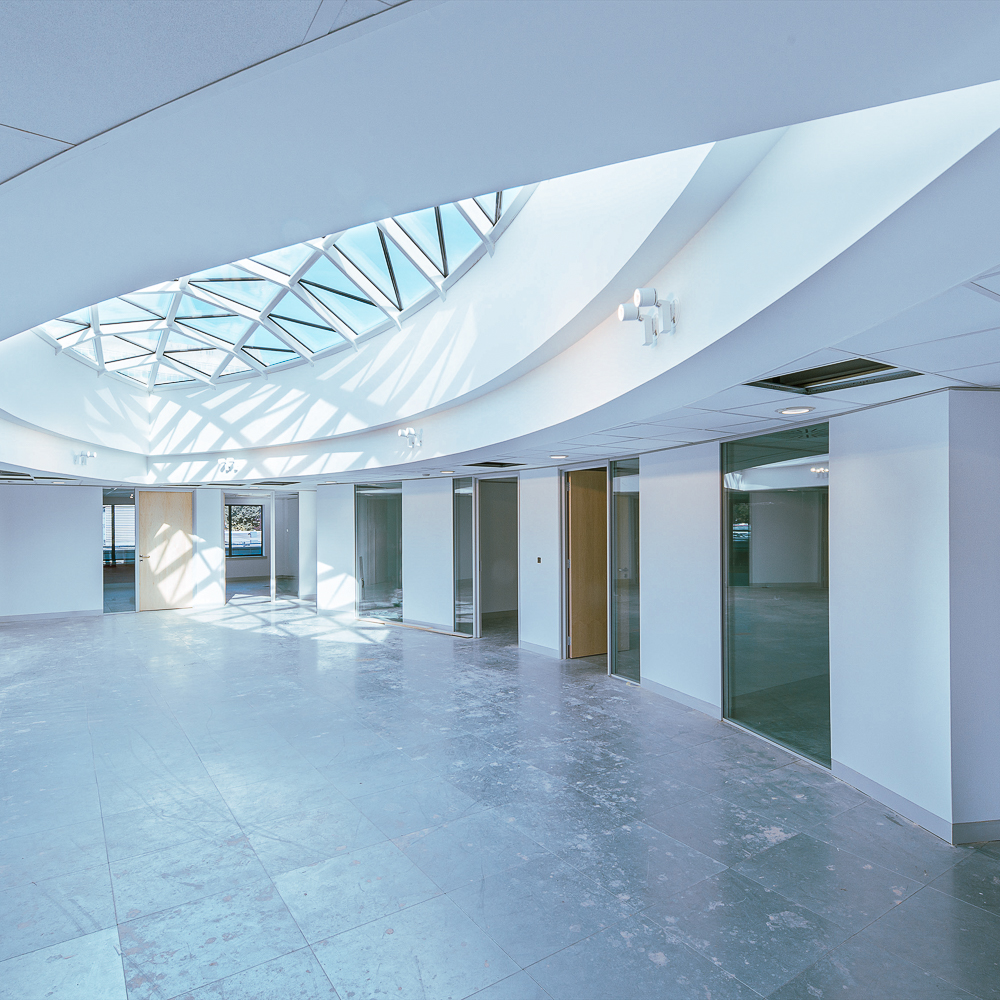

Spacious modern office interior with large skylight, glass doors, and tiled floors.

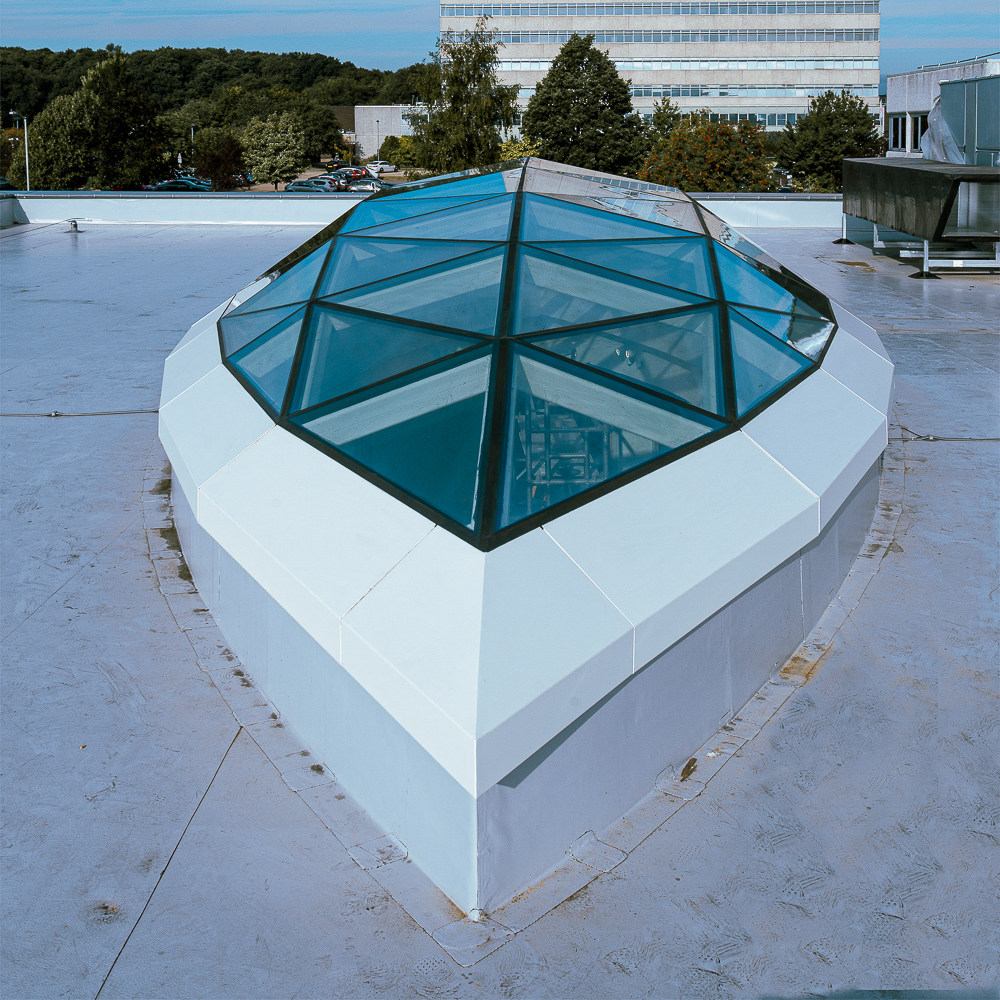

A geometric glass skylight is set in a white, angular frame on a flat rooftop. Trees and a multi-story building are visible in the background.

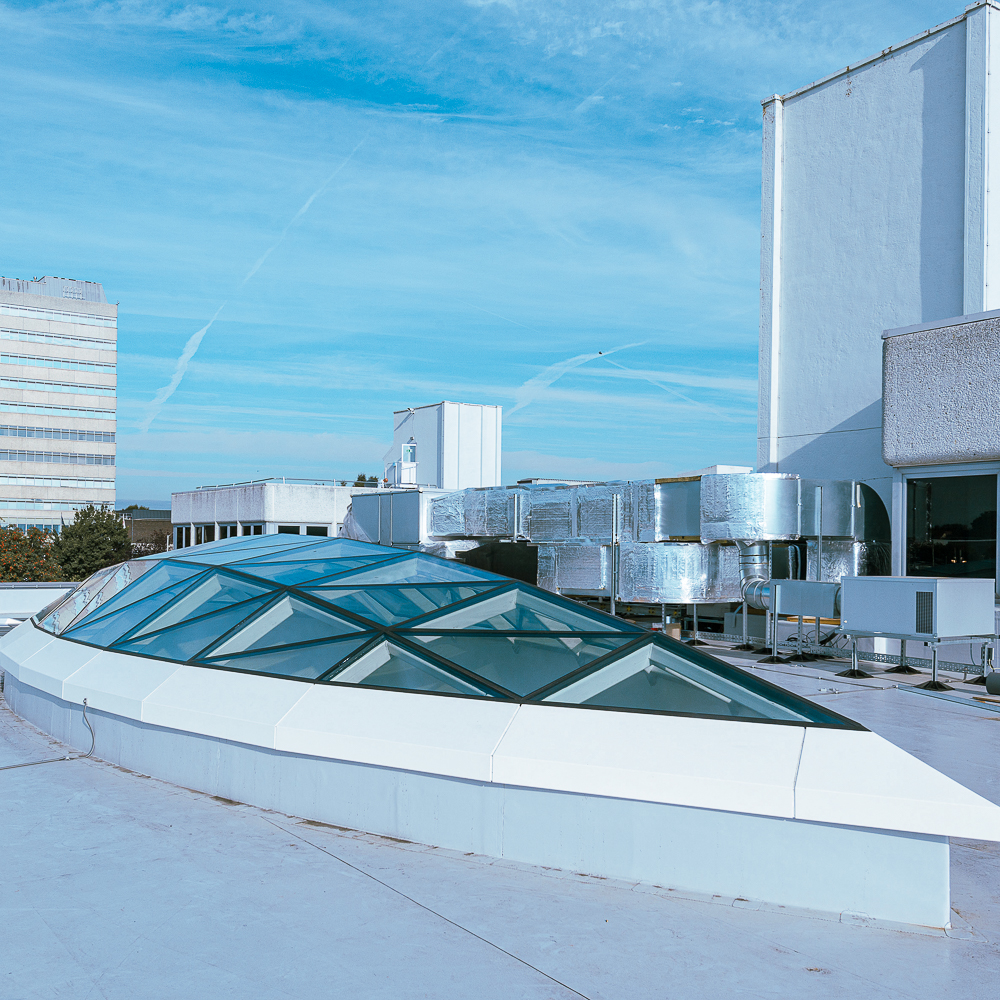

Modern rooftop with large glass panels and metallic ventilation systems against a blue sky backdrop with light clouds and contrails.

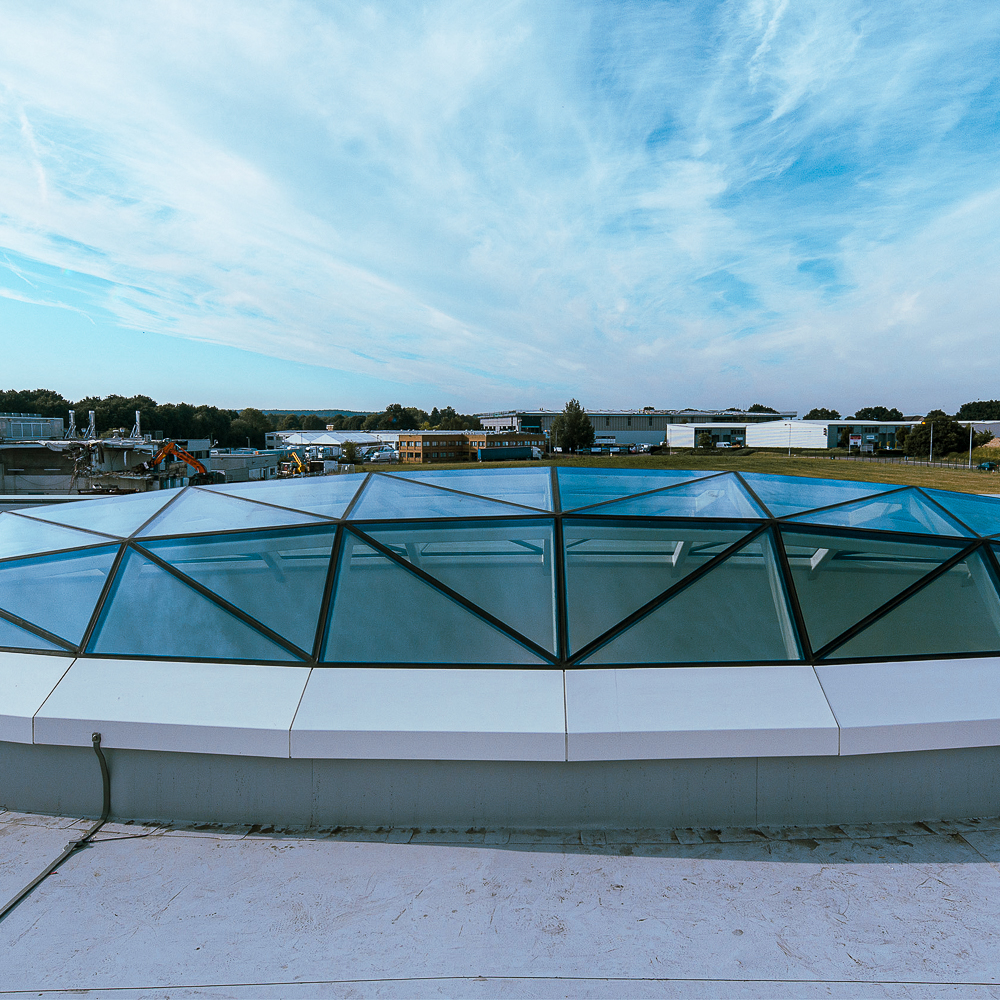

A rooftop with geometric glass panels, set against a backdrop of blue sky and distant buildings.

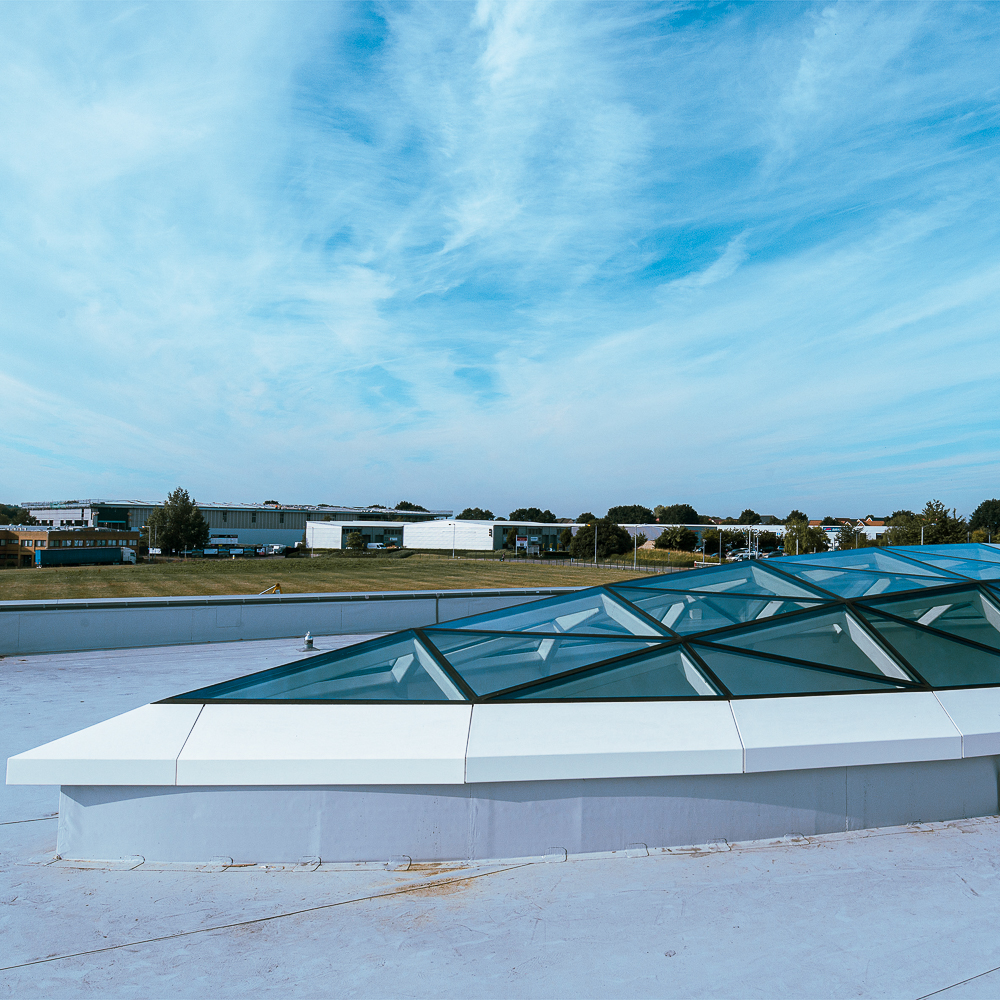

A geometric glass roof with triangular panels, set against a backdrop of a blue sky and distant buildings, viewed from a rooftop.

The Challenge

To create a visually impressive source of natural light in the new office extension for this global, research-driven pharmaceutical company embracing many cultures and diverse societies.

The Solution

This beautiful 12m x 6m fully self-supporting fixed glazing. Modelled using the glazing company’s 3D design software. The supporting members are a combination of 80mm x 120mm and 80mm x 80mm steel sections. The skylight was fully fabricated off site and lifted into place as a single unit.
